B.S.A. Lincoln Jeffries
Technical
Specifications
| Overall Lenght | 1 113 mm | Manufacturer | Birmingham Small Arms Company |
| Barrel
Lenght |
505 mm | Type | spring piston with cocking lever |
| Sight Radius | 430 mm | Manufactured Pieces | ? |
| Weight | 3,4 kg | Production Period | 1905-? |
| Caliber | 4,5 mm |

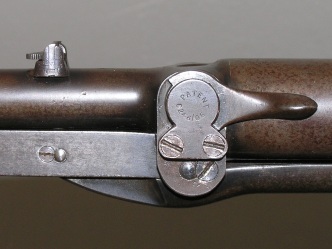

Rear
Sight Side View

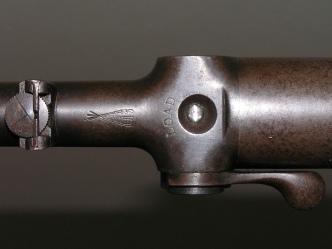

Rear
Sight Top View

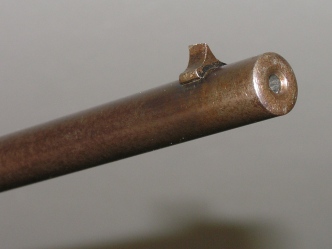

Front
Sight

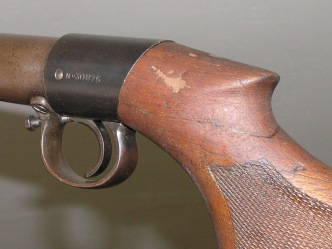

Shutter/Safety

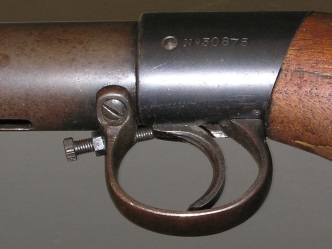

Trigger
and Trigger Guard

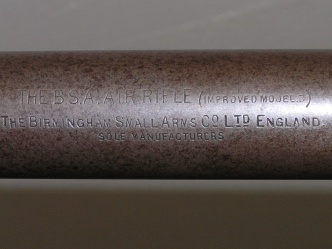

Markings
First
airgun of Birmingham Small Arms company has been manufactured
in 1905. Improved model D on the photographs has been produced
according to production number in 1910. Pulling lever is
located
underneath of the barrel. Pellets are inserting from above.
Groove barrel bore.
Airgun is marked by characteristic markings - guns build into pyramid.
On airgun are following markings:
Manufacturing number : 30 875
On the body tube above: THE B.S.A AIR RIFLE (IMPROVED MODEL D), THE BIRMINGHAM SMALL ARMS CO LTD ENGLAND, SOLE MANUFACTURERS
On the barrel underneath: PAT 11817-05
On the side cover: PATENT 8246/06
On the underbarrel lever: Lincoln Jeffries Patent 8761/04
Place for loading: LOAD
Butt on this airgun is bounded and it has been cemented in the past - cracked butt is common defect on this type of airguns. Butt is mounted by massive bolt inside. Very accurate manufacturing of all parts.
